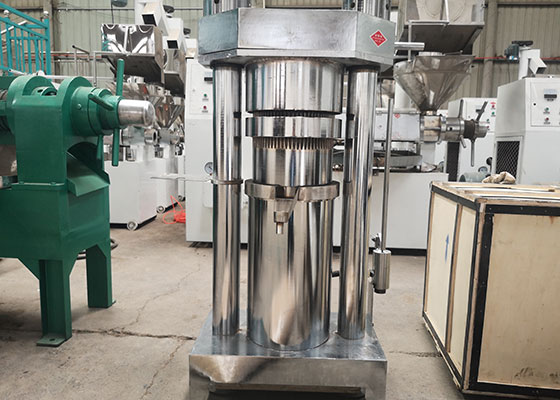

Hydraulic Oil Press Machine

This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds.

Description

This hydraulic oil press machine is suitable for cold pressing or hot pressing many oil seeds and oil plant, Especially for pressing sesame, pine nut, walnut, and so on valuable oil seeds.
Full automatic hydraulic oil press is a small oil press which is most convenient in operation, highest yield efficiency, as well as least replacement spare parts. Only one hydraulic oil press machine, you could get the better oil and easy to operate.

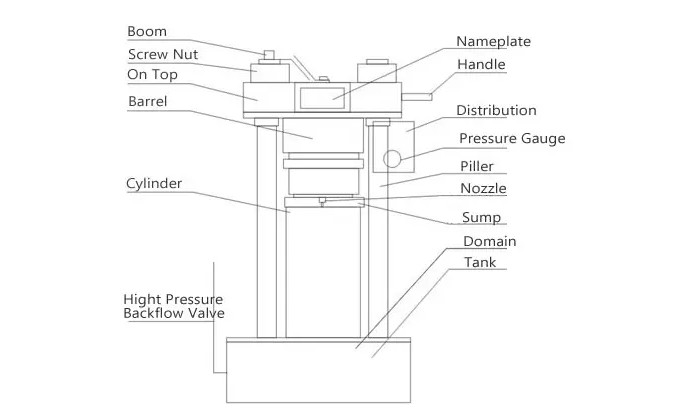

Structure of hydraulic oil press machine
1.Main engine:Main engine includes base, upright, top plate, oil drip pan nut and so on , it is one of the main parts. Firstly the oil material is put into the assembly of the press boring ,then it being droved up by the oil cylinder piston ,oil will outflow from the gap of press boring ,and then pass the oil drip pan to the drum for oil storage.
2.Hydraulic System :Hydraulic system is the main power force of this machine, it includes transmission shaft, turbine, worm gear, gear pump, high pressure pump, overflow valve; super high pressure safety valve; hand-operated valve; seamless steel tube; pipeline connect and other spare parts. This machine adopts the advanced power pack of the world, and compared with two plunger pump, it is faster , higher pressure and can resist higher temperature, it can continue working when the oil temperature is above 65 but needn’t cooling unit.
3.Electronic system:Electronic system is the most advanced part of this machine, it is fully automatic, easy to operate, and there’s no special request to the operator, so this machine is particularly suitable for peasant.
This machine is composed of motor, volt meter, pressure gauge, power insurance and so on.

Product Parameter:

Model	Size	Weight	Power	Voltage	Oil cake diameter	Capacity
YZ-185	6008801150mm	590Kg	2.2Kw/1.1Kw	220v/380v	185mm	20-24kg
YZ-230A	6709501460mm	920Kg	2.2Kw/1.1Kw	220v/380v	230mm	45-55kg
YZ-230B	6709501560mm	950Kg	2.2Kw/1.1Kw	220v/380v	230mm	50-60kg
YZ-250	7109501560mm	1070Kg	2.2Kw/1.1Kw	220v/380v	250mm	55-66kg
YZ-270	75010101640mm	1230Kg	4.0Kw/2.2Kw	220v/380v	270mm	70-85kg
YZ-300	100011001660mm	1600Kg	4.0Kw/2.2Kw	220v/380v	300mm	80-100kg
YZ-335A	110012401730mm	1750Kg	4.0Kw/2.2Kw	220v/380v	330mm	90-120kg
YZ-355	116012001810mm	2350Kg	5.0Kw/3.0Kw	220v/380v	355mm	105-140kg
